What is a rafter angle square?

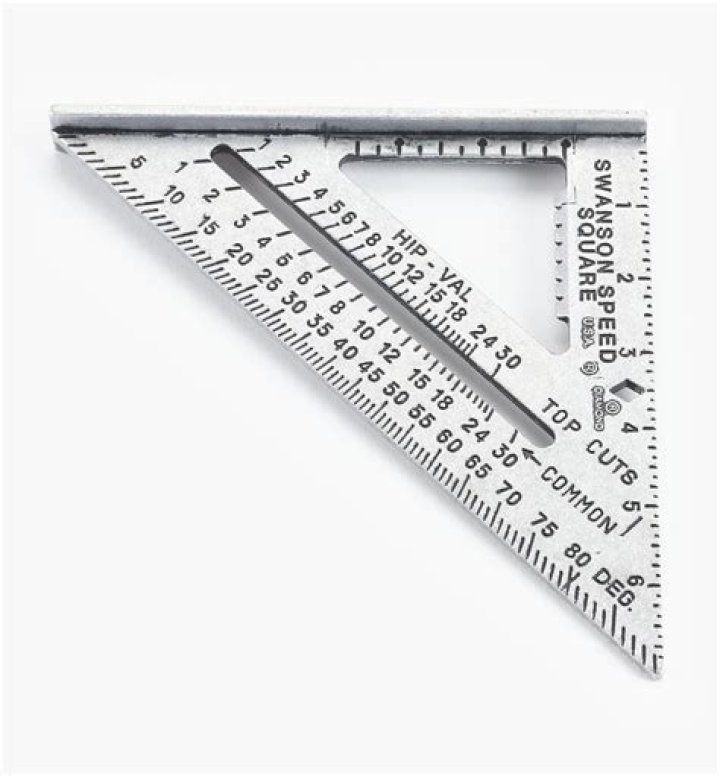

A Speed Square (rafter square, rafter angle square, triangle square) is a triangular carpenters' marking out tool manufactured and sold by Swanson Tool Co., Inc. Carpenters use it to make basic measurements and mark lines on dimensional lumber, and as a saw guide for short 45 and 90 degree cuts.

Also asked, is a rafter square the same as a speed square?

Speed Square is actually a trademarked name, but like Kleenex, it is often used as the generic name for this class of tool. Stanley's similar tool is called a Quick Square and Irwin's is simply called the Rafter Square.

Likewise, how do you use a rafter angle square? How to Use a Rafter Angle Square for Rafters

Put the square against the surface of the material you want to use.
Using the pivot point (the notch on the non-lip leg of the square), adjust the square until the degree gradation you need lines up with the edge.
Press the square against the edge.

Beside this, how do you measure angles?

How to measure an angle with a protractor:

Place the midpoint of the protractor on the VERTEX of the angle.
Line up one side of the angle with the zero line of the protractor (where you see the number 0).
Read the degrees where the other side crosses the number scale.

What is a carpenter's square used for?

In addition to framing, roofing, and building stairs, the carpenter's square can be used as a ruler to mark and cut large wood stock, as a straight edge with a corner, and a tool to check for square on an endless number of projects.

How do you find a miter angle?

To calculate the proper miter angle for trim-work moldings, simply divide this angle reading by 2. In the example shown, the inside corner is 90.5 degrees—nearly square. The precise miter angle of your moldings should be 45.25 degrees.

How do you measure roof rafters?

For a gable roof, the run is measured from the centerline of the ridge board to the outside edge of the top of the wall. Once you know the pitch and the total run, you can lay out the cuts of the rafter in a number of ways. The simplest method is to “step off” the layout in 1-ft. increments using a framing square.

How do you find the pitch of a roof?

The angle, or pitch, of a roof is calculated by the number of inches it rises vertically for every 12 inches it extends horizontally. For example, a roof that rises 6 inches for every 12 inches of horizontal run has a 6-in-12 pitch.

What angle do I cut for a 4 12 pitch?

This means if a roof rises 4' in the length of 12', your Roof Pitch would be 4/12 or 18.43 degrees.

Roof Pitch and Corresponding Angles.

Roof Pitch (slope)	Roof Angle (degree)
3:12 Pitch	14.04°
4:12 Pitch	18.43°
5:12 Pitch	22.62°
6:12 Pitch	26.57°

What is a common rafter?

common rafter. [¦käm·?n ′raf·t?r] (building construction) A rafter which extends from the plate of the roof to the ridge board at right angles to both members, and to which roofing is attached.

What size Rafter do I need?

Use these two tables for roof rafters with a slope of 3" in 12" or less.

Nominal Size	Spaced (o.c.)	Species / Grade ( 20# Live Load - No Finished Ceiling)
2" x 8"	12	21-7
	16	19-6
	24	16-8
2" x 10"	12	27-6

What is Rafter depth?

Rafters. In a conventionally framed roof, the rafters are fixed on a slope and run in the same direction as the roof slope. Rafters may be birdsmouthed to a depth not exceeding one third of the rafter depth.

What angle is a 8/12 pitch roof?

8/12 Roof Pitch InformationAnswer: 8/12 roof pitch equivalents roof rises 8″ in a length of 12″. 8/12 roof pitch angle = 33.69 degrees.

How do you use Square?

Put the T square at right angles along the edges of the drawing board. A T square has a straight edge that can be moved that is utilized to hold other technical tools like triangles and squares. The T square can be slid across the drawing table surface to the area where one wants to draw.

What are the two parts of a framing square?

There are two main parts to the square, the body and the tongue. The body is the 2" wide 2' long blade on the square. The body is normally used to mark the level or horizontal cuts on the rafter.

What are the different types of squares?

A square is a special case of many lower symmetry quadrilaterals:

a rectangle with two adjacent equal sides.
a quadrilateral with four equal sides and four right angles.
a parallelogram with one right angle and two adjacent equal sides.
a rhombus with a right angle.
a rhombus with all angles equal.

Who makes the best speed square?

6 Best Speed Squares – Reviewed in 2020

Swanson Tool S0101 7-inch Speed Square Layout Tool – Top Pick.
IRWIN Tools 7-Inch Rafter Square – The Runner-Up.
DEWALT DWHT46031 7-inch Rafter Speed Square.
VINCA ARLS-12 Speed-Square.
Johnson Level & Tool 7-Inch Aluminum Rafter Square.
Empire Level 2990 Magnum Rafter Square.

What is the best framing square?

5 Best Squares for Framing – Our Reviews 2020

Empire Level e1190 Framing & Carpenter Square – Top Pick.
IRWIN Tools 16 by 24-Inch Framer Square – The Runner-Up.
VINCA SCLS-1208 Carpenter L Framing Square – Best for the Money.
Stanley 45-300 Aluminum Carpenters Square.
Tarvol 12″ Framing Square.
Parts of a framing square.

What is the size of a speed square?

The speed square is available in two sizes. The smaller size is seven inches on a side (the hypotenuse is just under ten inches), while the larger version is twelve by twelve by seventeen inches (actually, for sticklers who know the Pythagorean Theorem, the precise measurement is 16.97 inches).

How do I build a roof?

Materials you may need to build a basic gable roof include:

Prefabricated trusses.
Sheathing (also known as decking) material, such as plywood or fiberglass.
Underlayment, such as tar paper (and possibly an ice barrier in colder climates)
Roof covering, such as tiles, shingles, or metal.
Roofing nails.

What is the tool for measuring angles?

protractors

How do you measure an angle without a protractor?

To measure an acute angle without a protractor, start by drawing a vertical line connecting the 2 rays of the angle to form a right triangle. Note that the angle formed by the adjacent side of the triangle and the opposite side measures 90 degrees. Next, measure the length of the adjacent side to find the run.

How do you read a framing square?

How to Read a Framing Square

Place the framing square on a table with the skinny length pointing right.
The skinny length is called the tongue.
The thicker, longer section is called the blade.
The corner of the framing square is called the heel.
On the face side, the tongue reads the eight square scale.

How do you find the angle of a triangle?

How To Find The Angle of a Triangle

Subtract the two known angles from 180° .
Plug the two angles into the formula and use algebra: a + b + c = 180°
