Which transistor element is used in CMOS logic?
Emily Cortez MOSFETs
.
In respect to this, what is a CMOS transistor?
CMOS. Stands for "Complementary Metal Oxide Semiconductor." It is a technology used to produce integrated circuits. The "MOS" in CMOS refers to the transistors in a CMOS component, called MOSFETs (metal oxide semiconductor field-effect transistors).
Subsequently, question is, why do we use CMOS? CMOS Technology: Complementary metal oxide semiconductor (CMOS technology) is used to construct ICs and this technology is used in digital logic circuits, microprocessors, microcontrollers and static RAM. The main features of CMOS technology are low static power consumption and high noise immunity.
Consequently, what is CMOS logic family?
CMOS Logic family. CMOS (complementary metal-oxide-semiconductor) technology is used predominantly to create digital circuitry. The fundamental building blocks of CMOS circuits are P-type and N-type MOSFET transistors. As a consequence, CMOS circuits consume very little energy.
How does a CMOS transistor work?

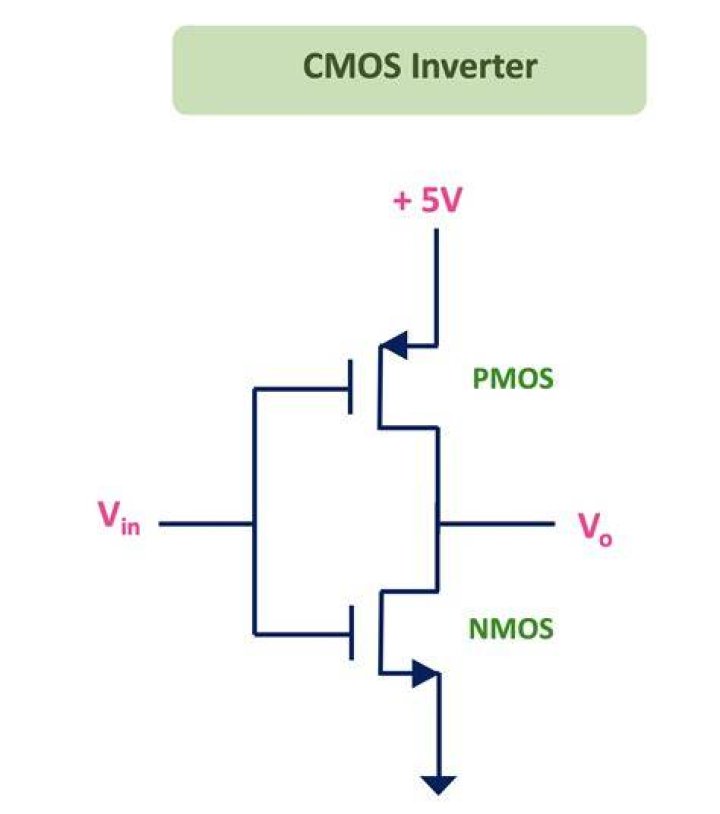

CMOS Inverter The NMOS transistor has an input from Vss (ground) and PMOS transistor has an input from Vdd. The terminal Y is output. When a high voltage (~ Vdd) is given at input terminal (A) of the inverter, the PMOS becomes open circuit and NMOS switched OFF so the output will be pulled down to Vss.
Related Question Answers
What is the role of CMOS?
A computer's Basic Input Output System and Complementary Metal-Oxide Semiconductor together handle a rudimentary and essential process: they set up the computer and boot the operating system. The BIOS's primary function is to handle the system setup process including driver loading and operating system booting.What are the advantages of CMOS?
CMOS (complementary metal oxide semiconductor) logic has a few desirable advantages: High input impedance. The input signal is driving electrodes with a layer of insulation (the metal oxide) between them and what they are controlling. This gives them a small amount of capacitance, but virtually infinite resistance.What do you mean by CMOS?
CMOS (complementary metal-oxide semiconductor) is the semiconductor technology used in the transistors that are manufactured into most of today's computer microchips. In CMOS technology, both kinds of transistors are used in a complementary way to form a current gate that forms an effective means of electrical control.What is a TTL?
Transistor-transistor logic (TTL) is a digital logic design in which bipolar transistor s act on direct-current pulses. TTL ICs usually have four-digit numbers beginning with 74 or 54. A TTL device employs transistor s with multiple emitters in gates having more than one input.What is CMOS and how it works?
CMOS stands for Complementary Metal Oxide Semiconductor. It is the name of the technology used to design the fundamental building block of every IC : a transistor. Complementary in the sense , it consists of both NMOS and PMOS (transistors where NMOS the carriers are electrons and in PMOS the current carriers are holesWhat is the difference between TTL and CMOS logic?
TTL stands for Transistor-Transistor logic, and it is a classification of cohesive circuits. CMOS stands for Complimentary Metal Oxide Semiconductor. TTL circuits employ BJT's while CMOS allows a much higher density of logic functions in a single chip compared to TTL.Is CMOS volatile or nonvolatile?
The CMOS is a semi-conductor chip that stores hardware configuration information and can be located on the BIOS chip or elsewhere on the motherboard. It uses static ram (does not need to be refreshed) and is sometimes referred to as NVRAM (non-volatile).What is the difference between BIOS and CMOS?
The BIOS is the program that starts a computer up, and the CMOS is where the BIOS stores the date, time, and system configuration details it needs to start the computer. CMOS is a type of memory technology, but most people use the term to refer to the chip that stores variable data for startup.Is CMOS faster than TTL?
CMOS compared to TTL:CMOS circuits do not draw as much power as TTL circuits while at rest. However, CMOS power consumption increases faster with higher clock speeds than TTL does. Due to longer rise and fall times, the transmission of digital signals becomes simpler and less expensive with CMOS chips.What are the characteristics of CMOS?
Two important characteristics of CMOS devices are high noise immunity and low static power consumption. Since one transistor of the MOSFET pair is always off, the series combination draws significant power only momentarily during switching between on and off states.How do you reset the CMOS?
To reset the BIOS by replacing the CMOS battery, follow these steps instead:- Shutdown your computer.
- Remove the power cord to make sure that your computer receives no power.
- Make sure you're grounded.
- Find the battery on your motherboard.
- Remove it.
- Wait 5 to 10 minutes.
- Put the battery back in.
- Power on your computer.
Which logic family is fastest?
ECL
Which is the most commonly used logic family?
metal–oxide–semiconductor
What is CMOS logic gates?
CMOS logic gates are made of IGFET (MOSFET) transistors rather than bipolar junction transistors. CMOS gate inputs are sensitive to static electricity. B-series CMOS gates have “buffered” outputs to increase voltage gain from input to output, resulting in faster output response to input signal changes.Which is faster TTL or ECL?
ECL is faster than TTL and requires more power to operate.Which type of CMOS circuits are good and better?
Which type of CMOS circuits are good and better? Explanation: N-well CMOS circuits are better than p-well CMOS circuits because of lower substrate bias effect. Explanation: N-well is formed by using ion implatation or diffusion.What is PMOS technology?
PMOS - P-type metal-oxide-semiconductor logic uses p-channel metal-oxide-semiconductor field effect transistors (MOSFETs) to implement logic gates and other digital circuits. PMOS transistors operate by creating an inversion layer in an n-type transistor body.Who invented CMOS?
Frank Wanlass
