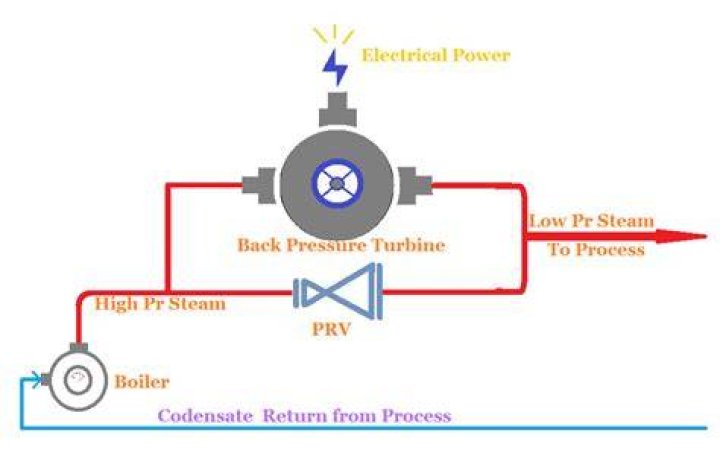

Back Pressure Turbines: a type of steam turbine that is used in connection with industrial processes where there is a need for low or medium pressure steam. The high pressure steam enters the back pressure steam turbine and while the steam expands – part of its thermal energy is converted into mechanical energy..
Just so, what is the difference between back pressure turbine and condensing turbine?
Back Pressure Turbine. Condensing turbine is selected when the steam demand for the process drivers is greater than the low-pressure process steam requirements. Back pressure turbine is selected when process steam demands are greater than the steam required for process drives such as large compressors.
Furthermore, what is a condensing steam turbine? Condensing turbines are most commonly found in electrical power plants. These turbines receive steam from a boiler and exhaust it to a condenser. The exhausted steam is at a pressure well below atmospheric, and is in a partially condensed state, typically of a quality near 90%.
Likewise, people ask, what is back pressure in condenser?
High Condenser Pressure Turbine exhaust back pressure is directly related to lost power output to the generator that converts mechanical energy to electrical power. Excess back pressure means reduced efficiency and dollars wasted.
What is extraction turbine?
Definition of extraction turbine. : a steam turbine provided with taps through which steam may be drawn off at various stages for purposes (such as heating) other than driving the turbine.
Related Question Answers
How does a back pressure turbine work?
Back Pressure Turbines: a type of steam turbine that is used in connection with industrial processes where there is a need for low or medium pressure steam. The high pressure steam enters the back pressure steam turbine and while the steam expands – part of its thermal energy is converted into mechanical energy.What is turbine efficiency?
Turbine efficiency is the ratio of actual work output of the turbine to the net input energy supplied in the form of fuel. For stand-alone gas turbines, without any heat recovery system the efficiency will be as low as 35 to 40 per cent.What are the types of steam turbines?
Although there only two types of steam turbine there are numerous mechanical arrangements of these, which include reheat steam turbines, cross compound steam turbines, single casing turbines, tandem steam turbines, condensing and exhaust steam turbines and, axial and radial flow steam turbines.What is a multi stage turbine?
Multistage Turbine. a gas or steam turbine in which the expansion of the steam or gas from its initial pressure to its final pressure and the conversion of its thermal energy into mechanical work takes place in a number of stages arranged in tandem, rather than in one stage.How do you increase steam turbine efficiency?
Turbine energy efficiency has a significant impact on overall steam power plant efficiency. Three new methods of increasing efficiency of turbine power plants are described: reheating of steam turbine, regenerative feed heating of steam turbine, and by binary vapour cycle of steam turbine.What is meant by back pressure?
Back pressure (or backpressure) is a resistance or force opposing the desired flow of fluid through pipes, leading to friction loss and pressure drop. The fluid is what is directed, tending to flow away from high-pressure regions and toward low-pressure regions.What is the difference between impulse and reaction turbine?
The basic and main difference between impulse and reaction turbine is that there is pressure change in the fluid as it passes through runner of reaction turbine while in impulse turbine there is no pressure change in the runner. So it uses kinetic energy as well as pressure energy to rotate the turbine.Why does steam expand in a turbine?
In simple terms, a steam turbine works by using a heat source (gas, coal, nuclear, solar) to heat water to extremely high temperatures until it is converted into steam. As that steam flows past a turbine's spinning blades, the steam expands and cools.How vacuum is maintained in condenser?
Condenser is mainly used to convert the low preassure steam at the end of the turbine to liquid so that the process is continued . Hence when the condensing process happens, volume of steam reduces and basic vacuum is created. Simply as liquids takes up less volume than gases whenever a steam is liquified..Why is condenser needed?
In thermal power plants, the purpose of a surface condenser is to condense the exhaust steam from a steam turbine to obtain maximum efficiency, and also to convert the turbine exhaust steam into pure water (referred to as steam condensate) so that it may be reused in the steam generator or boiler as boiler feed water.Why vacuum is important in the condenser?
A vacuum is maintained in the condenser so that steam can easily flow and more work can be extracted from the steam in the turbine. Therefore, vacuum is maintained in the condenser using either vacuum pump or steam ejector.What creates vacuum?
A vacuum can be created by removing air from a space using a vacuum pump or by reducing the pressure using a fast flow of fluid, as in Bernoulli's principle.What is meant by vacuum efficiency of a condenser?
What is the vacuum efficiency of a condenser? Answers: It is the ratio of the actual vacuum at the steam inlet to the maximum obtainable vacuum in a perfect condensing plant, i.e., it is the ratio of actual vacuum to ideal vacuum. That is, a steam condenser is either a direct contact or indirect contact heat exchanger.What is condenser and types?
Refrigerator Parts: Condenser. After passing through the condenser the refrigerant gets condensed but still remains at high pressure. It comes out in a partially liquid and gaseous state and then enters the throttling or expansion valve. There are three types of condensers: air cooled, water cooled and evaporative.How does a condenser vacuum pump work?
Vacuum Pump remove non condensate vapors and the associated water vapor from the turbine condenser and accordingly lowers the operating pressure of the condenser which increases the amount of heat available for conversion to mechanical power. It also remove inward air leakage from the condenser.What are steam turbines used for?
Steam turbines are found everywhere on the planet and are used to turn generators and make electricity or create propulsion for ships, airplanes, missiles. They convert heat energy in the form of vaporized water into motion using pressure on spinning blades.What is exhaust pressure in steam turbine?
the exhaust pressure is primarily fixed by the cold water temperature (in the condensing large steam turbines, for nuclear or thermoelectric plants, for example). The lower the condensing pressure, the better is the cycle efficiency.Which turbine has highest efficiency?
Large Francis turbines are individually designed for each site to operate with the given water supply and water head at the highest possible efficiency, typically over 90%.Why is steam turbine efficiency so low?
A decrease of the steam pressure pt in the condenser causes a decrease of the steam condensation temperature and consequently increases the temperature difference in the cycle. The efficiency of steam-turbine units increases when regenerative extraction of steam from the turbine is used.
