What is TTL encoder?
Sarah Duran general
Incremental encoders output two square-wave signals — A and B — in quadrature, meaning they are phase-shifted by 90 degrees relative to each other. TTL output uses differential wiring (A with /A and B with /B) to cancel noise. Most incremental encoders also include an index signal, which is typically denoted Z.
.
Also asked, what is the difference between TTL and HTL?
TTL (transistor-transistor-logic): A signal above 2 V is interpreted as logic 1 and a signal less than 0.8 V is interpreted as logic 0. HTL (high-threshold-logic): A signal above 3 V is a logic 1 and a signal less than 1 V is a logic 0. The high output signal level is dependent from the supply voltage.
Likewise, what is the function of encoder? Encoder converts information from one format or code to another. Encoders are used to translate rotary or linear motion (mechanical movement) into a digital signal. This is for the purpose of monitoring or controlling motion parameters such as speed, rate, direction, distance or position.
Furthermore, what is meant by encoder?
An encoder is an electronic device used to convert an analogue signal to a digital signal such as a BCD code. It has a number of input lines, but only one of the inputs is activated at a given time and produces an N-bit output code that depends on the activated input.
What is a push pull encoder signal?
The Push-Pull type output is an option that provides encoder output signal levels that are equal to the voltage supply in amplitude and referenced to the power supply common voltage (0V) level. The “low” level output is equal to the power supply common voltage (0V) level, in eflect pulling or sinking the load.
Related Question Answers
What are the types of encoder?
There are two different types of encoders: linear and rotary. A linear encoder responds to motion along a path, while a rotary encoder responds to rotational motion. An encoder is generally categorized by the means of its output. An absolute encoder generates unique bit configurations to track positions directly.What is TTL output?
Transistor–transistor logic (TTL) is a logic family built from bipolar junction transistors. Sometimes TTL-compatible logic levels are not associated directly with TTL integrated circuits, for example, they may be used at the inputs and outputs of electronic instruments.What is a TTL signal?
A TTL Signal is a kind of hardware interface standard based on the electrical properties of TTL (Transistor-Transistor Logic). For a TTL input this means that anything below 0.8 volts is a “zero” and anything above 2.4 volts is a “one,” and that it presents a load of less than 1.6ma to the driving circuit.What is a TTL encoder?

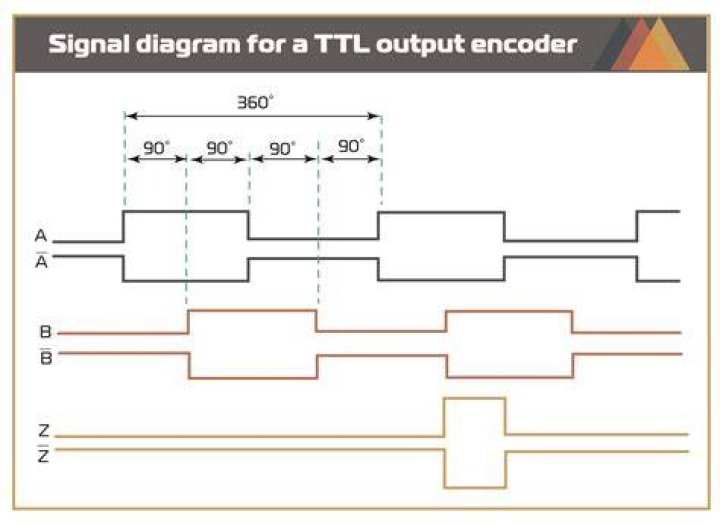

Updated August 2018 || Rotary encoders are used to track the angular position of a shaft, providing either incremental or absolute position information. This is a signal diagram for a TTL output encoder showing complementary (differential) signals. TTL output is often called differential line driver output.Why do encoders fail?
Most styles of optical encoders come sealed from the factory. Over time temperature cycling causes pressure changes and seals fail, which creates a path to the inside of the encoder. Often, the cause of the problem is simply moist air which enters the encoder and then condenses, rains, or freezes inside the encoder.What is output of encoder?
An encoder output driver amplifies and processes raw encoder signal into square-wave signals that can be transmitted to the readout device or drive. For incremental encoders, there are 3 types of encoder output: Open-collector encoder output. Push-pull encoder output. Differential line driver encoder output.Why encoder is used in motor?
Motor Encoder Overview. An encoder is an electromechanical device that provides an electrical signal that is used for speed and/or position control. Applications that utilize encoders or other sensors to control specific parameters are often referred to as closed-loop feedback or closed-loop control systems.What is encoder example?
An encoder is an electronic device used to convert an analogue signal to a digital signal such as a BCD code. The encoder allows 2 power N inputs and generates N-number of outputs. For example, in 4-2 encoder, if we give 4 inputs it produces only 2 outputs.What is encoder explain with example?
An encoder is a combinational circuit that converts binary information in the form of a 2N input lines into N output lines, which represent N bit code for the input. For simple encoders, it is assumed that only one input line is active at a time. As an example, let's consider Octal to Binary encoder.What is the working principle of encoder?
Encoder Working Principle. The Optical Encoders typically consist of a rotating and a stationary electronic circuit. The rotor is usually a metal, glass, or a plastic disc mounted on the encoder shaft. The disc has some kind of optical pattern, which is electronically decoded to generate position information.What is difference between encoder and decoder?
Both encoder and decoder are combinational logic circuits, however, one of the crucial difference between encoder and decoder is that an encoder provides binary code as its output. However, a decoder performs inverse operation of the encoder and thus converts the coded input into original data input.What are the applications of decoder?
Application of Decoder- The Decoders were used in analog to digital conversion in analog decoders.
- Used in electronic circuits to convert instructions into CPU control signals.
- They mainly used in logical circuits, data transfer.
