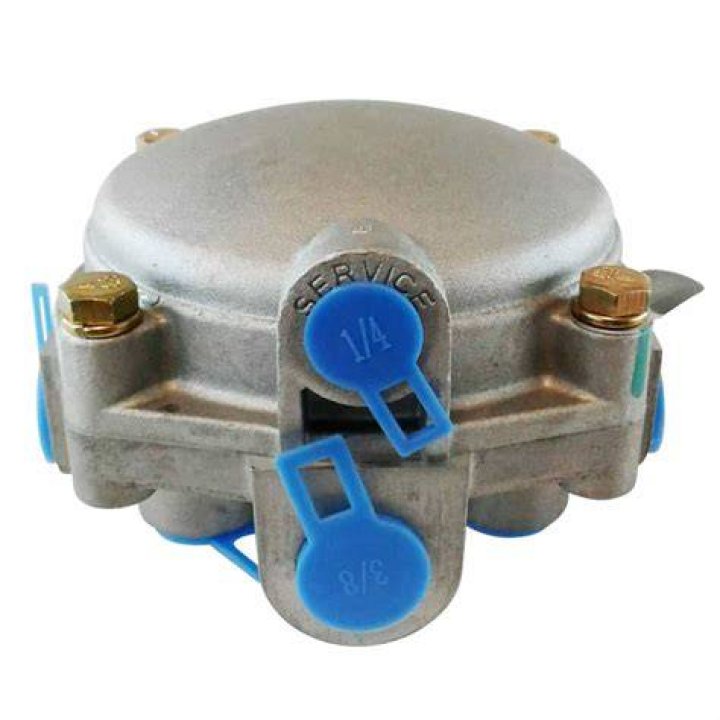

A relay valve is an air-operated valve typically used in air brake systems to remotely control the brakes at the rear of a heavy truck or semi-trailer in a tractor-trailer combination..
Likewise, what is the purpose of a quick release valve?
Because of the distance that the exhaust air has to travel, there can be a considerable lag time for the brakes to release. This is where the quick release valve comes in. A quick release valve allows the brakes to release quickly and fully, by allowing the pressurized air to exhaust near the brake chambers.
Also Know, how does a trailer control valve work? Trailer emergency valves are used inside trailer braking system. They are each controlled by a trailer control valve from the tractor vehicle. The function of trailer emercency valves is to gradually brake the trailer, regardless of the pressure in the trailer brake line.
Also know, what is the purpose of using a larger diameter pipe between the reservoir and the relay valve?
A large diameter pipe is connected between the service reservoir and relay valve. The air line from the foot valve to the relay valve now becomes a control line that signals to the relay valve the amount of air to be drawn from the service reservoir for faster application of the brakes.
How does a brake relay work?
A brake light switch is sometimes called a brake relay. This is the switch that tells your car's computer and lights that you've pressed the brakes. This sends a signal to turn the lights on and also allows you to shift out of park, or in some cases, turn your car on.
Related Question Answers
What is a protection valve?
Pressure Protection Valve. Pressure Protection Valve. Protects the air brake system in the event of a leak or failure within the air suspension system. Premium Valve has a serviceable replacement filter that minimizes contaminants and other debris from entering other air system accessories.What is an emergency relay valve?
DESCRIPTION. The relay emergency valve is normally used in trailer braking systems. It is a dual function valve, combining the functions of a relay valve and an emergency valve. The relay function is identical to that of a relay valve, serving the trailer air brake system as a remote controlled brake valve.What is crack pressure on a quick release valve?
Relay valves come in a variety of “crack” pressures. After a stop, when the driver lifts his foot from the brake pedal, a quick release valve (14) allows brake actuation air to be quickly exhausted near the brakes it serves, rather than having to travel back through the supply line, thus speeding brake release time.What does the exhaust valve do?
Its purpose is to open and close which will allow exhaust gas, or the results of a burned combustion, to escape the combustion chamber so that fresh air can be brought in to repeat the combustion cycle. The opening and closing of the exhaust valve is controlled by the camshaft.How do air brake valves work?
In a truck's air brake system, relay valves get a signal when a driver presses the treadle, which then opens the valve and allows air to enter the brake chamber via air inlet. The diaphragm gets pushed, then the rod, then the slack adjuster which twists to turn the brake camshaft.What causes air brakes to release slow?
The Problem: Brakes Apply or Release Too SlowlyHere are five possible causes: Restriction in either one of the control pipes or delivery pipes. Kinked nylon tubing is a common fault. Blocked airline filters on the trailer emergency or service lines.What is a brake lag?
The time it takes for an air system to feed air to the brakes and will add an additional 32ft to the total stopping distance is known as brake lag . The air brake lag distance at 55 mph on dry pavement adds about 32 feet. If somebody suddenly pulls out in front of you, your natural response is to hit the brakes.How does a quick release valve work?
Quick release valves were developed to speed up the release of air from the brake chambers to let the brakes release quicker. As the brake pedal is depressed and air flows toward the brake chamber, it passes through the quick release valve which is mounted nearby the chamber.What factor determines how much heat can be absorbed by the brake drum?
The amount of heat the brake drums can absorb depends on the metal thickness of which they are made. When enough friction is created between brake linings and drums, the wheels stop turning. The final factor that stops a vehicle is not the brakes, but the traction between tires and road surface.What is the basic principle of the dual air brake system?
Most heavy-duty vehicles use dual air brake systems for safety. A dual air brake system has two separate air brake systems, which use a single set of brake controls. Each system has its own air tanks, hoses, lines, etc. One system typically operates the regular brakes on the rear axle or axles.What is the most common cause of loss of effective braking in an air brake system?
A leak in the air brake system, which causes all the air to be lost, will also cause the springs to put on the brakes. Tractor and straight truck spring brakes will come fully on when air pressure drops to a range of 20 to 45 psi (typically 20 to 30 psi).What are two functions of the slack adjusters?
The air brake slack adjusters perform two functions: (1) The slack adjuster acts as a lever arm to convert the linear pushrod force to rotational camshaft torque. The length of the slack adjuster determines the amount of torque multiplication provided from the pushrod.When should the hand valve be used?
The trailer hand valve (also called the "trolley valve" or "Johnson bar") works the trailer brakes. The trailer hand valve should be used only to test the trailer brakes. Do not use it in driving because of the danger of making the trailer skid.Where is the tractor protection valve located?
The tractor protection valve itself is located at the point under the tractor's frame where the flexible airlines that go to the trailer are connected by the coupling devices called glad hands.What is pneumatic braking system?
Pneumatic braking system. ? An pneumatic brake or a compressed air brake system, is a type of friction brake for vehicles in which compressed air pressing on a piston is used to apply the pressure to the brake pad needed to stop the vehicle.How does a shunt valve work on a trailer?
Shunt valve are used to release the brakes on a trailer when it is uncoupled from a tractor unit. The shunt valve is operated by pushing the knob in; this releases the service brakes and allows the trailer to be manoeuvred around the yard without the emergency (red) line being coupled.What is the trailer air supply control?
Describe what the trailer air supply control does.It is used to supply the trailer with air, shut the air off and put on the trailer emergency brakes. It is a yellow, six sided knob used to control the tractor protection valve. It is a device used to keep the trailer behind the tractor.What would cause the brake lights not to work?
