Definition. The second moment of area is also known as the moment of inertia of a shape. The second moment of area is a measure of the 'efficiency' of a cross-sectional shape to resist bending caused by loading. Beam 1 is stronger than Beam 2 because it has a higher second moment of area (I)..
Accordingly, what is meant by second moment of area?
The 2nd moment of area, or second area moment and also known as the area moment of inertia, is a geometrical property of an area which reflects how its points are distributed with regard to an arbitrary axis.
Furthermore, how do you find the area of a section? Different dimensions of I beam exist in the market and can be supplied by the beam suppliers.
I Meam Moment of Inertia Formula and et al.:
| I SECTION (I-BEAM) |
| Area moment of inertia | Ixx | Ixx = H3b/12 + 2[h3B/12 + hB(H+h)2/4] |
Keeping this in view, what is first and second moment of area?
The first moment of area is commonly used in applications to determine the centroid of an object. The second moment of area is a property of a shape that is used to predict the shapes resistance to bending and deflection which are directly proportional.
What is Ixx?
Ixx : the moment of inertia of a body along the horizontal axis passing through the centroid of the body. Iyy : the moment of inertia of a body along the vertical axis passing through the centroid of the body.
Related Question Answers
What is the unit of inertia?
The unit for inertia is the same as the units for mass, kg, the unit of moment of inertia is kg. m2. m 2. Inertia is the resistance to linear acceleration by a force applied to the body. Moment of inertia is the resistance to angular acceleration by torque applied to the body.What is moment of surface area?
The first moment of area is based on the mathematical construct moments in metric spaces. It is a measure of the spatial distribution of a shape in relation to an axis. First moment of area is commonly used to determine the centroid of an area.What does radius of gyration mean?
Radius of gyration is defined as the distance from the axis of rotation to a point where the total mass of the body is supposed to be concentrated, so that the moment of inertia about the axis may remain the same. Simply, gyration is the distribution of the components of an object.Can moment of inertia negative?
Similar to moments of inertia discussed previously, the value of product of inertia depends on the position and orientation of selected axes. It is possible for the product of inertia to have a positive, negative, or even a zero value.What is cracking moment?
Cracking moment denoted as (M cr ) is defined as the moment, which when exceeded causes the cracking of concrete. For the calculation of the deflection in the concrete at cracking moment, the moment is calculated at which point, the failure will occur in concrete. Here, the term is the compression strength in concrete.Why is second moment of area important?
The planar second moment of area provides insight into a beam's resistance to bending due to an applied moment, force, or distributed load perpendicular to its neutral axis, as a function of its shape. In engineering (especially mechanical and civil), moment of inertia commonly refers to the second moment of the area.How do you find the first moment?
The statical or first moment of area (Q) simply measures the distribution of a beam sections's area relative to an axis. It is calculated by taking the summation of all areas, multiplied by its distance from a particular axis (Area by Distance).What is first moment and second moment?
In mathematics, a moment is a specific quantitative measure of the shape of a function. If the function represents physical density, then the zeroth moment is the total mass, the first moment divided by the total mass is the center of mass, and the second moment is the rotational inertia.How do you calculate bending strength?
So to calculate the flexural strength (σ), multiply the force by the length of the sample, and then multiply this by three. Then multiply the depth of the sample by itself (i.e., square it), multiply the result by the width of the sample and then multiply this by two. Finally, divide the first result by the second.How do you find the moment of inertia?
General FormulaBasically, for any rotating object, the moment of inertia can be calculated by taking the distance of each particle from the axis of rotation (r in the equation), squaring that value (that's the r2 term), and multiplying it times the mass of that particle.What is section modulus used for?
Section modulus is a geometric property of the cross section used for designing beams and flexural members. It does not represent anything physically. To define section modulus, it may be defined as the ratio of total moment resisted by the section to the stress in the extreme fibre which is equal to yield stress.How do you find the second moment of a rectangle?

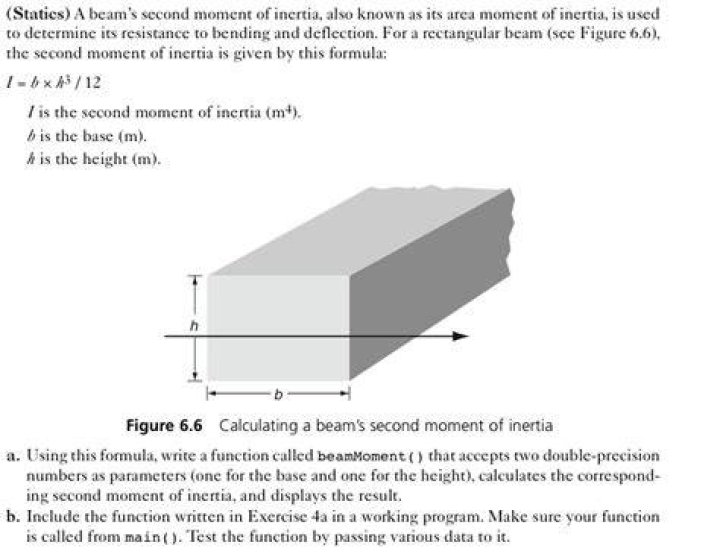

For a rectangle, Where b is breadth (horizontal) and h is height (vertical) if the load is vertical - e.g. gravity load. Second Moment of Area of a cross-section is found by taking each mm2 and multiplying by the square of the distance from an axis. Then add them all up.What is second moment of inertia used for?
Area Moment of Inertia or Moment of Inertia for an Area - also known as Second Moment of Area - I, is a property of shape that is used to predict deflection, bending and stress in beams.How do you get Ixx and Iyy?
Ixx : the moment of inertia of a body along the horizontal axis passing through the centroid of the body. Iyy : the moment of inertia of a body along the vertical axis passing through the centroid of the body.How do you determine concentration?
The standard formula is C = m/V, where C is the concentration, m is the mass of the solute dissolved, and V is the total volume of the solution. If you have a small concentration, find the answer in parts per million (ppm) to make it easier to follow.
