What is isolator and its function?
Emily Cortez news

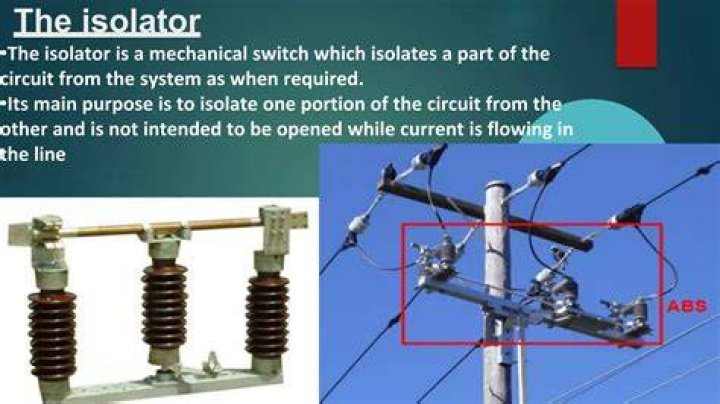

An isolator is a mechanical switching device that, in the open position, allows for isolation of the input and output of a device. An isolator differs from a switch in that it is intended to be opened when the circuit is not carrying current.
.
Simply so, what does an isolator do?
It separates the circuit part in which the error takes place from the power supply. Isolators are applicable for high voltage devices like transformers. The main function of Isolator is, it blocks the DC signals & allows the AC signals to flow. Circuit Breaker is one kind of protection device which works like a switch.
Subsequently, question is, what is difference between isolator and circuit breaker? An isolator r is an off load device, whereas Circuit Breaker is an On load device. Isolators are operated manually. The Circuit breaker is a device known as an Automatic circuit breaker (ACB) or Miniature circuit breaker (MCB), which trips the entire system if any fault occurs and thus the whole system is affected.
Similarly, what is the function of isolator and circuit breaker?
An isolator is an offload device meant for interruption of power flow to an equipment or circuit during maintenance whereas, circuit breakers are protection devices, similar to fuses, that protects the equipment from overload and short circuit faults throughout its operation.
What is bus isolator?
A bus isolator is an off load switch that connects the line breaker and the bus. It sits between circuit breaker and bus. It sits between circuit breaker and current transformer.
Related Question Answers
Does an isolator trip?
An isolator is a manually operated switch. Elaborated answer: A circuit breaker is an automatic protection device which is so selected to handle the operating current but trip at 120% of rated current or so.How does battery isolator work?
The battery isolator is attached to the vehicle's alternator, which is the device responsible for providing the vehicle with electrical power and for charging the vehicle's battery. The battery isolator uses sensors to determine the number of batteries it is connected to and to draw power from the strongest battery.Is a battery isolator needed?
Answer: In most cases you do not want to connect the batteries using a battery isolator. The only time you use a battery isolator is in motor homes or boats. When you sit for long times with you motor off and you want to be sure your vehicle starts in the morning, this is when you would use a battery isolator.Why are the isolators used?
Its main purpose is to isolate one portion of the circuit from the other and is not intended to be opened while current is flowing in the line. Isolators are generally used on both ends of the breaker so that repair or replacement of circuit breaker can be done without any danger.How does an optical isolator work?
An optical isolator is a passive magneto-optic device that only allows light to travel in one direction. Isolators are used to protect a source from back reflections or signals that may occur after the isolator. Back reflections can damage a laser source or cause it to mode hop, amplitude modulate, or frequency shift.Why do I need a battery isolator?
A battery isolator helps to ensure that the starting battery has sufficient power to start the engine and recharge the batteries if, for example, loads on the auxiliary battery (e.g., refrigerator or navigation lights) cause it to be drained, or if an auxiliary battery fails.What is onload isolator?
The outdoor On Load Isolator or Load Break Switches contained in the list are meant for the switching of feeder lines and ring mains or transformer feeders (in connection with MAX Fuses with tripping arrangement or with indication) for short circuit protection for switching under offload conditions.What is an Open in a circuit?
a) Open circuit means the wires are cut off so there will be no current flow, but there is voltage. b) Closed circuit means the wires are connected so there will be flow of current, but there is no voltage. c) Short circuit also refers closed circuit.How many types of circuit breakers are there?
The three types of circuit breakers are standard, GFCI and AFCI. Each handles different amp capacities and operates in different locations in the home. Standard circuit breakers monitor the flow of electricity as it enters your home and makes its way through your electrical wiring system to outlets and appliances.What is the difference between circuit breaker and relay?
The Relay is a switching and sensing device, but the Circuit breaker is an isolating or disconnecting device. Relays operate on low power input voltage. The Relay is used to control or select one among many circuits, whereas Circuit Breaker is one per circuit. Relay acts an electrical amplifier for discrete signal.What is difference between insulator and isolator?
As nouns the difference between insulator and isolatoris that insulator is a substance that does not transmit heat (thermal insulator''), sound (''acoustic insulator'') or electricity (''electrical insulator ) while isolator is an electrical device that detects short circuits and isolates them.What is the difference between a switch and an isolator?
Isolator Switches are designed to isolate an electrical circuit from its power source. Isolator switches does not have any interruption capacity. Isolator switches are purely mechanical device and it can conduct normal operational currents as well as under short circuit current for defined period.How does a circuit breaker work?
A circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by excess current from an overload or short circuit. Its basic function is to interrupt current flow after a fault is detected.Can a circuit breaker be used as an isolator?
Isolator is designed to work when there is no load connected which makes it an off-load device. Whereas circuit-breaker is considered an on-load device. Both of these devices have the common purpose of disconnecting a certain section of the circuit from rest of the system.Why isolator is used on both sides of circuit breaker?
'Isolation' means a physical (and visible) break in the conductors between the circuit breaker and any potential source of supply -and this is provided by placing isolator switches on each side of the circuit breaker. So in design it provides two isolator use both side of circuit beaker.What is VCB?
VCB stands for Vacuum Circuit Breaker. In vacuum circuit breakers, the vacuum is used as the arc quenching medium. Vacuum offers the highest insulating strength. For higher voltage vacuum technology has been developed but not commercially viable.What is AB switch?
An “air break switch' is a switchgear device that uses air as the dielectric. Air Break Switches (ABS) are widely installed throughout distribution networks for use as both isolation or switching points. These switches are usually operated by a handle which is located at the ground level.How do you isolate a circuit breaker?
The fuse box is the best place to isolate electricity.- Decide whether you want to isolate a complete circuit or a particular electrical appliance.
- Flip the trip switch or remove a fuse in your fuse box by hand if you want to completely isolate a circuit such as the lights or wall sockets.
