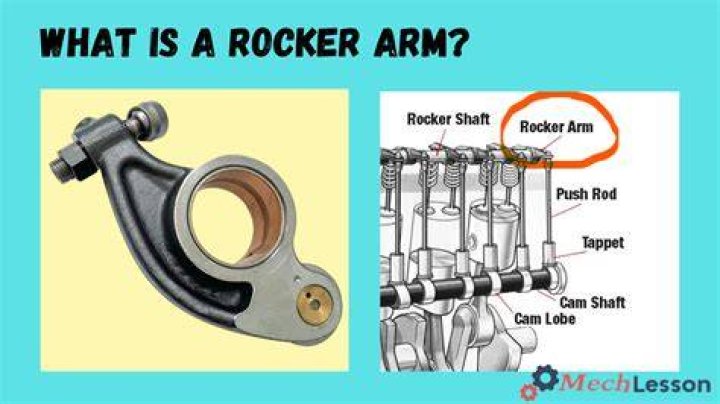

What is a rocker in a car engine?

A rocker arm (in the context of an internal combustion engine of automotive, marine, motorcycle and reciprocating aviation types) is an oscillating lever that conveys radial movement from the cam lobe into linear movement at the poppet valve to open it. The opposite end opens the valve.

Hereof, can you drive a car with a broken rocker arm?

With broken or loose rocker arms, the exhaust valves and intake valves can't function correctly and the cylinder associated with the faulty rocker arm will be disabled. This will ultimately limit the performance of your engine and your ability to drive the car smoothly and safely.

Also Know, what does a rocker arm control valve do? The rocker arm of an internal combustion engine changes radial movement into linear movement; this kind of device is properly called a reciprocating lever. It takes the spinning motion of the overhead camshaft and turns it into the up-and-down movement that opens and closes the valves.

Just so, what causes rocker arm failure?

1. Photograph of the failed rocker arm shaft. One of the major causes of component failure is faulty manufacturing. This includes all effects that increase brittleness or those inducing cracks and or stress raisers in the component.

Can a rocker arm cause a misfire?

More common causes of a misfire could be a bad coil, worn plug or plugged injector. However, many 3.7 and 4.7 engines are having problems with the rocker arm falling out of place and this is very disturbing! A misfire with a “rocker arm out of place” will be a very severe and notable misfire.

What happens if rocker arms are too loose?

If they're a little loose, the valves will close completely, if not, they will burn, not seal properly and you will lose compression. On hydraulic lifters, I like to use the clips you can buy that cover the oil holes on the rocker arms and adjust the valves with the engine hot and running.

How much do lifters cost to replace?

With an average labor cost of $80, this means the average labor cost will be in the area of $500. On a four cylinder or straight six engine this will be a four hour job, which means it will cost approximately $320. Parts will run you in the area of $20.

Can lifter tick cause damage?

If the problem with the noise persists and is not solved as quickly as possible, the cause of the engine lifter noise - whichever it is - can prevent other parts of your engine of working properly and even cause very serious problems and damages to your car in the long run.

How do I fix error code p2646?

What repairs can fix the P2646 code?

Replacing the 'A' rocker arm actuator.
Repairing the wiring harness or connector to the actuator.
Changing the oil and filter to the correct viscosity oil.
Flush the engine passages of sludge from lack of oil changes.

Do push rods wear out?

The lower ends of the pushrods are pretty much bathed in splash/run-off oil all the time so they tend to never show much wear, if the upper ends are failing your not getting enough oil to them.

How do you replace rocker arms?

Remove the bolts from the valve cover using a socket and ratchet. Lift the valve cover away from the cylinder head. Remove the nuts from the affected rocker arms using a socket and ratchet. Remove the ball and rocker arms from the cylinder head.

What does a rocker cover do?

The rocker cover was invented to keep the oil in and the dirt out. This part is now found on nearly every existing internal combustion engine today.

How do you know if you have a bad lifter?

Signs of a Faulty Hydraulic LifterThe most obvious symptom of a faulty hydraulic lifter is the noise it creates in your car's engine. You can usually distinguish the faulty lifter by the distinct sound. Instead of a knock or ping, a faulty hydraulic lifter will usually make a sound more reminiscent of a tapping sound.

What is the advantage of roller rocker arms?

A roller rocker has a small roller that rolls over the end of the valve stem. This virtually eliminates side load on the stem and greatly reduces wear. Another area of high friction and wear is between the rocker arm and rocker shaft. This is a problem area in the TR6 engine.

What is p2646 code?

OBD-II Code P2646 is defined as a "A" Rocker Arm Actuator System Performance/Stuck Off. The Rocker Arm Control Solenoid supplies hydraulic pressure to the Variable Timing mechanism. This allows the Variable Timing System to adjust valve timing as needed.

How do pushrods work?

Function. The roller ball at the lower end of the push rod rides on the lobes of the camshaft. As the offset lobe of the cam contacts the lower ball, the push rod is forced up and lifts the rocker arm. This action opens an intake or exhaust valve in the cylinder head of the engine.

What does a camshaft do?

The camshaft is critical to the basic function of an engine. Comprised of two distinct parts, the cams and the shaft, the camshaft is the element that enables valves to open. As the shaft rotates, the egg-shaped cams (or "lobes") push the valves open in sync with the crankshaft gear.

How much does it cost to replace rocker arms?

Replacement Cost. The rocker arm parts themselves only cost between $15 and $200 if you purchase them individually at an automotive store.

What does changing rocker arm ratio do?

64 inches of actual valve movement. Essentially, changing to a larger ratio rocker arm is the same as increasing the lift of your cam the same amount. Opening both valves further usually is a benefit in the power department as your engine is capable of moving more air and exhaust through it.

Does rocker arm ratio change duration?

An increase in rocker arm ratio nets more than additional lift. It will also change the cam's duration characteristics. Because the increased ratio effectively speeds up valve movement, that means the valve will reach any opening height sooner than it would with a lower-ratio rocker arm.

Do all engines have rocker arms?

The only engines with rocker arms are Overhead Valve engines where the cam shaft is low down and the rotary action of each cam lobe is transferred to the top using a vertical rod which then pushes a rocker arm which in turn pushes down on the valve.

What is tappet clearance?

Tappet clearance is the space between top of the valve stem and rocker arm. It's purpose is to allow for some mechanical expansion and lengthening of the valve stem and engine push rods as the engine warms up. This clearance is also called valve lash.

How are rocker arms lubricated?

Lubrication of a rocker arm assembly can be by means of an oil mist generated within an engine housing. The oil mist coats engine components lubricating any surfaces of contact between them. The mist may not reach into the upper regions of the housing below the engine cover.

What are the symptoms of bad valves?

Bad Valve Seals Symptoms

Cold Engine. One of the most noticeable signs of worn or cracked valve stem seals will be just after a cold engine start.
Idle and Stop and Go Driving.
Off-Throttle Braking.
Oil Consumption.
Excessive Smoke.
