How many segment registers are there in 8086?
Olivia Carter general
four segment registers
.
Correspondingly, what are segment registers in 8086?

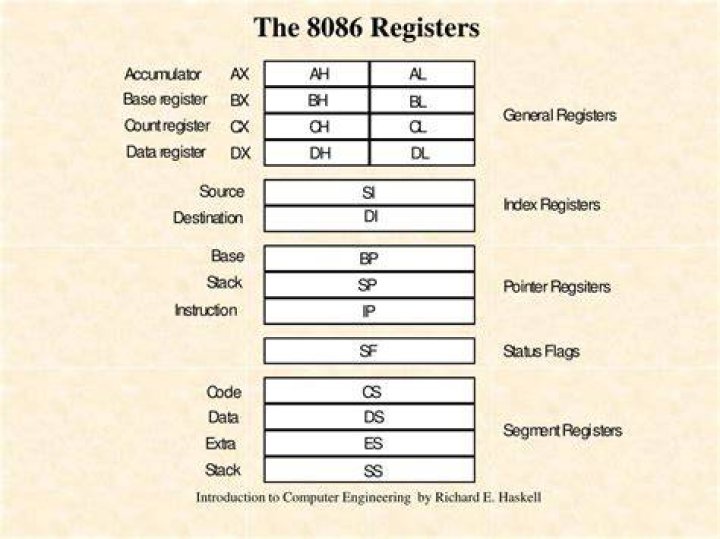

8086 Segment Registers These stand for Code Seg- ment, Data Segment, Extra Segment, and Stack Segment, respectively. These registers are all 16 bits wide. They deal with selecting blocks (segments) of main memory. A segment reg- ister (e.g., cs) points at the beginning of a segment in memory.
Also, how many segments are there in 8086? 16 segments
Besides, how many registers are there in 8086?
8
How many registers are there?
Many CPUs now have general purpose registers (GPRs), which may contain both data and memory addresses. Registers vary in both number and size, depending on the CPU architecture. Some processors have 8 registers while others have 16, 32, or more. For many years, registers were 32-bit, but now many are 64-bit in size.
Related Question Answers
What is the use of segment registers in 8086?
What is the use of it? Segment registers hold the base value of different segments like Code Segment, Data Segment etc. The contents of these segments are accessed using the Base Address + Offset. 8086 works in Real Mode (Can access only 1 Megabyte of memory).What is extra segment register?
Extra Segment Register (ES) : also refers to a segment in the memory which is another data segment in the memory. Stack Segment Register (SS): is used for addressing stack segment of the memory. The stack segment is that segment of memory which is used to store stack data.What are the flags in 8086?
There are 3 control flags in 8086 microprocessor and these are:- Directional Flag (D) – This flag is specifically used in string instructions.
- Interrupt Flag (I) – This flag is for interrupts.
- Trap Flag (T) – This flag is used for on-chip debugging.
What is stack segment register?
In 8086, the main stack register is called stack pointer - SP. The stack segment register (SS) is usually used to store information about the memory segment that stores the call stack of currently executed program. SP points to current stack top. To pop a value from the stack, the POP instruction is used.What is the role of segment register?
The segment registers stores the starting addresses of a data. To get the exact location of data or instruction within a segment, an offset value is required. To reference any memory location in a segment, the processor combines the segment address in the segment register with the offset value of the location.How Pipelining is achieved in 8086?
In 8086 BIU(bus interface unit) fetches upto 6 instruction bytes and stores them in FIFO(first in first out)Queue. In pipelining, when the nth instruction is executed, the (n+1) th instruction is fetched and thus the processing speed is increased. Pipelining has become possible due to the use of queue.What is offset register 8086?
Answered Aug 23, 2015. The offset address in an 8086 is the logical address that the program "thinks about" when it addresses a location in memory. The Execution Unit (EU or CPU) is responsible for generating the offset address.Where is physical address in 8086?
This 16-bit address with respect to the part (segment of 64KB) of the memory bank is called the offset. So, Physical Address = Base Address + Offset. Suppose the Data Segment holds the Base Aaddress as 1000h and the data you need is present in the 0020h memory location (Offset) of the Data Segment.Is 8086 a RISC or CISC?
The 8086-based processors are an example of a complex instruction set computer, or CISC, architecture. Many newer processor designs use a reduced instruction set computer, or RISC, architecture instead. — This also meant that RISC programs used more memory.How many pins are there in 8086?
40 pin
Why is it called 8085?
[Source: why were this name is given to the microprocessor 8086?] By now, they realized the power of a programmable microprocessor. When they made 8 bit processors, the double wide 4004 was the 8008, and the double wide 4040 was the 8080. The 8085 was the 5 volt only version of the 8080.How 8086 is faster than 8085?
8085 only supports integer and decimal whereas 8086 supports integer, decimal and ASCII arithmetic. 8085 supports only single operating mode whereas 8086 operates in two modes. 8085 requires less external hardware whereas 8086 requires more external hardware. The cost of 8085 is low and 8086 is high.What is the maximum clock frequency in 8086?
5 Mhz
What are the different types of registers?
There are various types of Registers those are used for various purpose. Some Mostly used Registers are Accumulator(AC), Data Register(DR), Address Register(AR), Program Counter(PC), Memory Data Register (MDR), Index Register(IR), Memory Buffer Register(MBR). Registers are used for performing the various operations.Is 8086 still used?
We don't really use the 8086 CPU that much anymore, certainly not in new PCs, what we do continue to use is 8086 instruction set compatibility. (It's usually referred to as x86 architecture, in reference to 80286, 80386 and 80486 chips that followed the 8086.What is data and address size 8086?
What is the data and address size in 8086? All internal registers, as well as internal and external data buses, are 16 bits wide, which firmly established the "16-bit microprocessor" identity of the 8086. A 20-bit external address bus provides a 1 MB physical address space (220 = 1,048,576).How many 16 bit registers are there in 8086?
eight
