How does a motorcycle stator work?

Stator designs vary widely but all work on the same principles. When a magnet is moved past a coil of wire, it causes the coil to produce a burst of electricity. A stator has between four to eighteen spokes or poles arranged in a circle similar to the spokes on a wagon wheel.

Likewise, what does a stator do on a motorcycle?

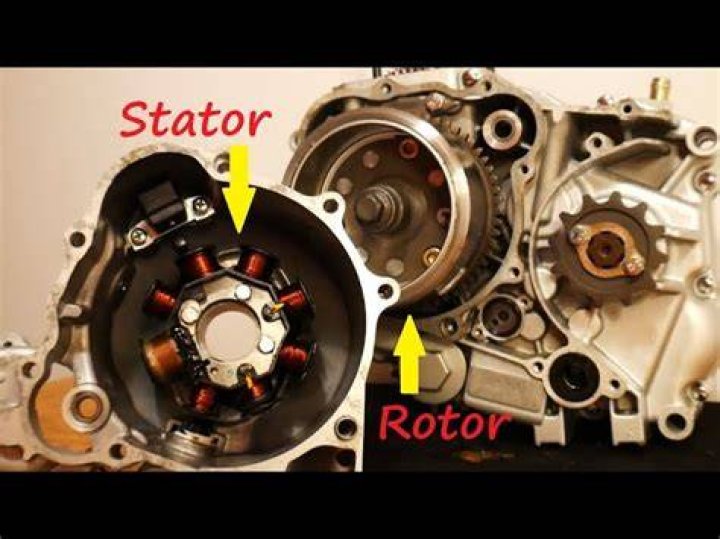

A stator is also the part of the alternator that's stationary (while the rotor, also called the flywheel, moves). Alternators generate power through alternating current (AC). Stored power in the vehicle battery must be DC, however, requiring regulator conversion to keep your bike powered up.

Similarly, how do you test a motorcycle stator? First perform the static stator tests. With the ignition switch in the “Off” position, disconnect the regulator from the stator. Set the multimeter to “Resistance” or “Ohms” on the lowest scale, and insert one probe into one of the stator pin sockets. Touch the other probe to any chassis ground.

Similarly one may ask, will a motorcycle start with a bad stator?

If the stator is bad, the bike won't run at all. The stator generates energy for spark. Assuming the air cleaner is clean and other general maintenance has been performed, if the bike won't kick start but runs as you state, the problem is probably either the spark plug and/or fuel delivery.

What happens when a stator goes bad?

The stator coil generates the power for the spark plug and other accessories on small engines Without a stator there would be no spark at all, meaning the engine won't run. While a stator is dying, it can produce a weak spark, causing the engine to miss or run poorly. Symptoms are often worsened as the engine warms up.

What causes a motorcycle stator to fail?

Motorcycle Stator Heat BuildupA stator's biggest enemy is heat buildup in the wire windings. High engine temperatures can lead to stator coil open and closed failures, especially in modern motorcycle engines that submerge the stator in an engine oil bath to help dissipate heat.

Will a bad stator drain a battery?

If the stator doesn't provide enough power, the battery will begin to drain. Readings over 1.5 Ohms are an indication that the stator is faulty. Next, check to make sure nothing is going to ground by connecting the red lead to the connector and the black lead to the negative terminal of the battery.

What causes stator failure?

The primary root cause of electrical tracking failures is the presence of any contamination build-up on the stator winding insulation. motor operation. Specifically with stators, extreme vibration will cause friction between the coils and the stator core.

What is the purpose of stator?

In an electric motor, the stator provides a rotating magnetic field that drives the rotating armature; in a generator, the stator converts the rotating magnetic field to electric current. In fluid powered devices, the stator guides the flow of fluid to or from the rotating part of the system.

Will a stator charge a battery?

In simple terms, the battery provides this power. The battery would quickly be depleted, though, if not for the star of the charging system show, the stator. Think of your stator as the piece that makes electricity to keep your battery charged up to make all that electrical stuff on your bike work.

What are the symptoms of a bad voltage regulator on a motorcycle?

Symptoms of a Bad Voltage Regulator

Dimming or Pulsing Lights. A damaged or failed voltage regulator can rapidly diminish the alternator's ability to cycle power from the battery.
Dead Battery. A burned-out voltage regulator will diminish the vehicle battery's ability to charge or stop it altogether.
Unpredictable Engine Performance.

How many volts should a stator put out?

For example a 32-amp stator should put out 18 volts AC (VAC) per each 1000-RPM. At 2000 it should be 36 VAC (18x2). At 3000 RPM it should be 54 VAC (18 X 3). Each system has a certain voltage it should produce per 1000 RPM.

Can a bad stator cause backfire?

The AC power windings have nothing to do with the ignition coils on a stator. Runs good at lower rpms but runs bad at higher rpms (High speed coil is going bad) Backfiring and just won't run good. Sled slowly loses power during the course of the day.

Will a bike run without a rectifier?

Without the rectifier and voltage regulator converting the variable voltage AC output of the alternator to a usable 12–14 Volts DC, the battery will not be re-charged or be able to keep up with the demand of the ignition system and any lights or accessories that are switched on.

Will a Harley run with a bad stator?

Yep, sounds like the stator is bad. With the bike running, it should read between 20 - 70 VAC, with the voltage increasing as the RPM's are raised. You've done well at 34,000 miles, as most fail in the 20 - 25K mile range. I recommend replacing with an aftermarket stator from Accel or Cycle Electric.

Can you rebuild a stator?

All rebuilt stators require a core exchange and come with a one year replacement warranty. Most new and rebuilt stators are built to stock specification, but we do offer some high output stator versions as part of the Hot Shot Series so you can get even more electrical power from your machine.

How do you test a generator stator?

To test a brushed stator: Isolate the stator by removing the connections to the AVR (automatic voltage regulator) as well as the wires running from the stator to the electrical panel. Set your multi-meter to test resistance.

How do you check stator windings?

To test the windings for an open, connect one ohmmeter lead to the common motor terminal, and the other meter lead to the run winding. The ohmmeter should indicate continuity through the winding. The resistance of the run winding of a single-phase motor can vary greatly from one motor to another.

How much does it cost to fix a stator?

Stator & Rotor - $250 - $1,500 for a new setA new stator and rotor set typically costs between $250 and $1,500. They are stationary and rotating parts of any system that generates electricity. When they stop working seamlessly, they need repair or replacement.
