How do you tell if the heating element in a dryer is bad?

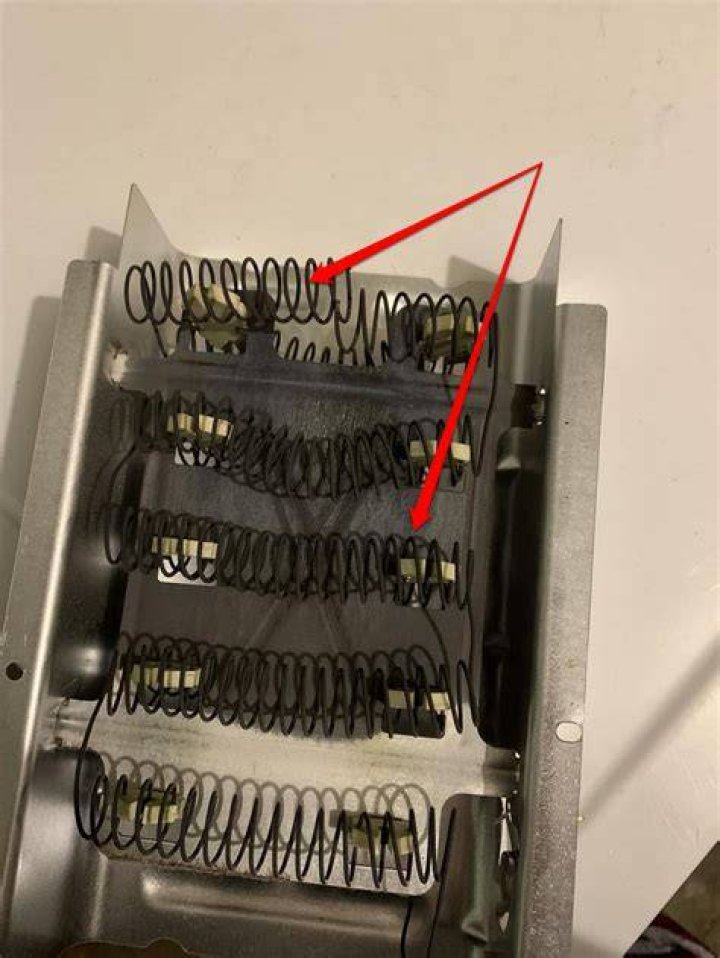

Unplug the dryer when checking the heating element. It is a long coil of wire inside a metal can. Check it with an ohm meter. If there is no continuity, replace the heating element.

Correspondingly, what causes a heating element to burn out in a dryer?

If the coil gets too hot, it burns out. Among the conditions that can cause elevated temperatures are insufficient airflow in the element compartment, failure of safety devices and a power surge.

One may also ask, why is my dryer not heating up? Another possible cause for a dryer not heating up could be attributed to a faulty thermal fuse. Once a dryer's thermal fuse has blown, it is no longer of any use. If your dryer's fuse is blown, you will have to replace it. Open up your dryer's cabinet and locate its thermal fuse so that you can test it.

Similarly, you may ask, how many ohms should a dryer heating element read?

The ideal reading for a tumble dryer element is between 20 and 50 ohms - so any reading significantly outside of this range means the element is faulty and needs to be replaced, in this case this element in this video is fine.

How much does it cost to replace heating element in Samsung dryer?

Replacement Parts Prices for heating elements for electric dryers vary with make and model, but they typically range from $35 to $100.

How long does a dryer heating element last?

between 8 and 18 years

How do I know if my thermal fuse is blown?

Touch the left multimeter lead to the left side of the thermal fuse; touch the right multimeter lead to the right side of the fuse. Keep an eye on the multimeter needle; a needle that fails to move indicates a blown thermal fuse. If this is the case, don't fret: thermal fuse replacement is a simple task.

What does it mean when your dryer isn t getting hot?

Clothes Dryer Doesn't Heat Properly. With an electric clothes dryer, no heat often means that the circuit breaker or fuse that controls the power has blown; reset or replace it. Be aware that a dryer may have two breakers or fuses. The motor will run when one works, but the heating element requires both.

Will a water heater work with one element?

The upper thermostat takes first priority, heating the water to a preset temperature before powering up the lower thermostat to heat the water to its final temperature. Only one heating element will be active at any one time.

How do I test my thermostat?

Thank goodness it is much less expensive to replace a thermostat than your central heat and air unit.

Check your thermostat to make sure it is in the "On" position.
Stand at the thermostat while an assistant stands at the furnace.
Raise the thermostat heat settings slowly.
Turn off the breaker to your furnace.

Does it matter which wire goes where on a hot water heater element?

Reconnect and secure the electrical wires to the new heater element terminals. No, it does not matter which wire goes to which heating element terminal in this case - electricity can flow in either direction.

What causes a heating element to burn out in a water heater?

The most common cause of burned out elements on new water heater installations or new element replacements is DRYFIRE. This happens because the installer fails to open a hot water faucet while the heater tank is filling with water and therefore purging or bleeding air from the system.

How much does it cost to replace a heating element in a hot water heater?

Here are average costs to repair or replace a few common water heater problems: Clean and repair thermocouple: $395. Replace thermostat and/or heating element: $150–$200.

What happens when a heating element goes out in a water heater?

Cause #1: Broken heating elementIf you have an electric water heater, the heating elements inside the tank can break and lead to a loss of hot water. Sometimes, your water will slowly start to cool down and this could be because the element has burned out.

How do I reset my water heater?

Part 2Pressing the Reset Button

Locate the red reset button. There should be a red button in the center of the control panel.
Press the button firmly. The reset button can sometimes be sticky, especially if you haven't reset the heater in a while.
Wait to hear the button click.

How much does it cost to replace heating element in dryer?

Although a dryer's heating element can cost anywhere from $25 to over $200, the average cost of a heating element at the time of publication is approximately $35 to $60.

How do heating elements fail?

A build-up of heat in the element occurs, exceeding the operating temperatures of the element, resulting in element failure. A dry-fired element occurs when the heating element is not submerged in water. Within a matter of seconds, the heating element gets very hot and usually becomes damaged.

How do you replace a heating element in a Samsung dryer?

How to Install a Dryer Heating Element in a Samsung Dryer

Slide the Samsung dryer away from the wall.
Remove the two screws located on the back of the top cover with a screwdriver.
Remove the top cover from the control panel, remove the two guide screws with a screwdriver and then pull the six clips from the guide panel.
Open the front door to the dryer and remove the filter.

What causes bake element to burn out?

Heating elements can break if cooled too rapidly or being exposed to environments that cause deterioration. This could be a very hot element that gets doused with liquid from something being cooked in the oven.

Where is the thermal fuse on a dryer?

Thermal fuses are installed on the dryer's exhaust duct. Typically, you must remove the back panel of a dryer to access the fuse. Ensure to shut off electrical power to the dryer before attempting to locate and troubleshoot the fuse.

How does the heating element in a dryer work?

Electric dryers require a heating element to heat the air inside the dryer drum. Depending on your dryer model, the heating element installs inside a housing, and heats the air as it passes through the blower, or a circular heating element sits directly behind your dryer's drum, heating the air inside the drum.

How do you fix a dryer element?

Instructions

Shut off the power. Unplug the dryer to disconnect electrical power.
Remove the back panel.
Disconnect the wires.
Remove the heating element.
Transfer the high-limit thermostat to the new heating element.
Install the new heating element.
Reattach the back panel.
Plug in the dryer.

How long should a dryer heating element stay on?

Yes, the Heating element stays on for 2 minutes, goes off (stops glowing) and does not come on again. After it sits for 15-30 min or so, I can start it again with the same result.

Why is my dryer not getting hot?

Another possible cause for a dryer not heating up could be attributed to a faulty thermal fuse. Once a dryer's thermal fuse has blown, it is no longer of any use. If your dryer's fuse is blown, you will have to replace it. Open up your dryer's cabinet and locate its thermal fuse so that you can test it.
