Can a strainer be installed vertically?

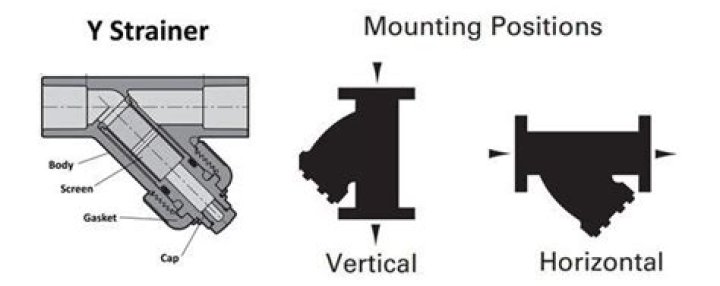

If a vertical installation is planned, a Y-Strainer is the one that will work. Y-Strainers can be installed either vertically or horizontally. A basket strainer must be installed horizontally. Whether you choose a wye or basket strainer, a spare basket or screen should always be purchased at the same time.

Keeping this in view, what is Y type strainer?

Y-Strainer Application Information. Y-Strainers are devices for mechanically removing unwanted solids from liquid, gas or steam lines by means of a perforated or wire mesh straining element. They are used in pipelines to protect pumps, meters, control valves, steam traps, regulators and other process equipment.

One may also ask, what are the different types of strainers? There are two types of strainers, basket and y. The y strainer is normally used where there is a small amount of material to be collected. This strainer can be installed in the horizontal or vertical position. The basket must be to the bottom of the pipe or facing the down flow direction to collect the particles.

Beside this, what is strainer in pipeline?

Strainer can be defined as a pipe fitting through which liquid is passed for purification, filtering or separation from solid matter; anything used to strain a liquid; any device functioning as a sieve or filter used to prevent solid bodies from mixing in a liquid stream or flowline.

How do Basket strainers work?

A basket type strainer is installed horizontally in flowing fluid systems and is designed to removed suspended objects from the flowing medium (usually a fluid). Fluid flows into the strainer casing through the suction port, it then travels through a perforated cylinder and is discharged through the discharge port.

How does Y type strainer work?

The Y Strainer Purpose. The y strainer purpose is to remove unwanted particles from steam, gas, or liquid using a straining element typically made of wire mesh. Using this mechanical process in pipelines helps to protect everything from pumps to steam traps.

How do you determine strainer mesh size?

Take one square inch of filtering material (screen) and count the holes in it. If you have 80 openings in that area, then you have an 80-mesh screen. If you have 200, then it is 200-mesh and so forth. Therefore, the higher the mesh number, the smaller the particles that are filtered.

How do you install a Y strainer?

To provide for easier maintenance, the Y-Strainer should be located where the drain plug can be removed. Additionally, ensure the drain or blow-off is located at the lowest position when installed. If installed in the vertical position, the wye side of the strainer must be pointing downward.

What is difference between strainer and filter?

The primary difference between filters and strainers is in the size of the particulates they are removing. In simpler terms the word “strainer” is typically used if the particulate being removed is visible to the naked eye; whereas, if the particulate is too small to see with the naked eye the term “filter” is used.

Is strainer a filter?

A filter is a device that removes particles from a given liquid or gas. It includes a disposable medium for removing particles of specified micron sizes. Simply stated, a Strainer is also a filter; however, it uses a perforated plate or screen mesh to remove larger particles from a process stream.

Is a strainer the same as a colander?

A strainer is really a catchall name for any type of, well, strainer. It is usually fine mesh and bowl-shaped, good for rinsing a pint of berries or draining pasta. A colander is typically a larger bowl-shaped strainer, often with bigger holes (although that's not always the case).

What is the used of strainer?

Strainer. A kitchen device that is most used to strain liquids away from other ingredients but also to ocassionally sift fine ingredients away from larger ingredients. The Strainer may be formed as a spoon-shaped utensil or a basket-shaped strainer from various materials such as metal, nylon or cloth.

What is the purpose of a suction strainer?

It is often asked whether a pump suction strainer is necessary or recommended. The purpose of a suction strainer is to act as a particulate strainer or filter ahead of the pump. This prevents large particles from entering the pump.

What is the function of the strainer?

A strainer is used to protect other downstream equipment (e.g., pumps, instrumentation) from damage by rogue junk. A filter is employed to separate particles from the fluid. This is why I say that strainers are a type of filter.

What is strainer mesh size?

Mesh size for strainers is usually denominated in mm or microns however it can also be assigned a mesh number (which is number of holes per inch). A micron is one millionth of a meter. There are some basic references of size of mesh but vary according to such things as heat, pressure and the nature of the material.

What is strainer in HVAC?

Strainers are integrated into heating and cooling systems to filter impurities from the circulating medium. Strainers are located before meters and control valves, to prevent impurities from damaging them or causing them to close.

What are strainers?

A strainer is created by a manmade or natural obstruction such as a tree, root system, fencing, or guard rails. An obstruction allows water to pass through but stops and holds objects such as boats and people.

What is a china cap strainer?

It is a perforated metal conical strainer with much larger holes than a chinois. A China cap is used to remove seeds and other coarse matter from soft foods, but produces a coarser-textured product than the chinois. Both the chinois and the China cap often are used with a cone-shaped pestle.

Which of the following types of strainers are used when making cocktails?

There are three primary types of cocktails strainers; the Hawthorne Strainer, the Julep strainer and the fine mesh strainer. Each bar strainer has its own application, which we'll address as we get into the details surrounding each type.

What is a filter basket?

A “filter basket” is a metallic, basket shaped filter, that holds the coffee grounds when preparing espresso. The basket has tiny holes that allow coffee to pass through and retain the grounds. The filter basket is inserted into the portafilter, and the portafilter locks into the brew group of the espresso machine.
