Can a step up transformer be used as a step down transformer?
Sarah Scott news
Transformer design is centered around maximum efficiency. That said, yes you may use a “step down” transformer as a step up transformer. However, the operating efficiency will be affected based on the design of the core and placement of the primary coil and secondary coil of wire.
.
Moreover, how is a step down transformer converted to a step up transformer?
Use step down transformer as step up transformers
- Talking about 2-phase transformers: Of course you can connect.
- Generally no, because the turns ratio is sometimes manipulated to get the correct step-down ratio under load and this means that in reverse, the output voltage will fall short of expectations.
Beside above, can a transformer be reversed? A standard step-down transformer may contain taps on the input (primary side). When a transformer is reverse fed, the taps move to the output side and so their operation is reversed. For reverse fed applications, raising the taps will increase output voltage and lowering the taps will lower output voltage.
Furthermore, what is the difference between a step up transformer and a step down transformer?

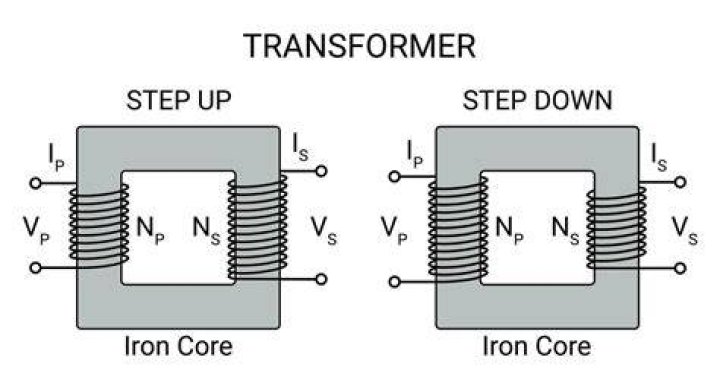

Key Differences between Step-up transformer and Step-down transformer. When the output (secondary) voltage is greater than its input (primary) voltage, it is called a step-up transformer, whereas, in step-down transformer output (secondary) voltage is less.
Which is true of a step down transformer but not a step up transformer?
Answer: (C) A step-up transformer increases voltage and decreases current. A step-down transformer does the opposite. Explanation: The set-up transformer increases the voltage as the number of secondary winding turn are more as compared to the primary winding in the transformer.
Related Question Answers
What is a step up transformer used for?
In the National Grid, a step-up transformer is used to increase the voltage and reduce the current. The voltage is increased from about 25,000 Volts (V) to 400,000 V causing the current to decrease. Less current means less energy is lost through heating the wire.What happens if you connect a transformer backwards?
Step down transformers are designed with the primary winding rated for a higher voltage and lower current than the secondary. If used in reverse the primary now becomes the secondary and may not be able to cope with the new voltages and currents.Where is step up transformer used?
Applications – Step-up transformer is used in transmission lines for transforming the high voltage produced by the alternator. The power loss of the transmission line is directly proportional to the square of the current flows through it.How can I make a step up transformer at home?
Building an Electrical Step-up Transformer- Use a large steel bolt as the transformer's magnetic core.
- Wrap the bolt with insulating tape to isolate the windings from the “core”.
- Wind the two copper wires several times (at least 12 turns) around the ends of the “core” (steel bolt).
How do you test a step down transformer?
To conduct this test, the transformer must be completely disconnected, and you need to set the multimeter to read resistance in ohms (Ω). Touch the meter leads to the two input terminals of the primary coil (they may be marked H1 and H2) and check the reading.Do step down transformers waste electricity?
It turns out that these transformers consume power whenever they are plugged into the wall, whether they are connected to a device or not. They also waste power when powering a device. The power consumption is not large -- on the order of 1 to 5 watts per transformer. But it does add up.How do you know if a transformer is primary or secondary?
- First turn ON digital multimeter and select continuity mode.
- Connect the test leads to the Transformer terminals.
- Read the measurement value is displayed.
- displayed multimeter value is between 300 to 700, this side is primary.
- displayed multimeter value is between 2 to 3, this side is secondary.
